This is the 2nd entry of the HYCU backup series.
- Part.1 Installing HYCU Backup Controller
- Part.2 Adding Backup Source
- Part.3 Adding Target
- Part.4 Definition of Backup Policy
- Part.5 Backup and Restore VM
In the Part.1 post, I deployed HYCU Backup Controller on Nutanix AHV.
At this time, I'm going to show how to add AHV cluster to HYCU as source environment.
※The content of this blog is based on my own evaluation work and knowledge. Please follow the official documentation when actually installing and using the products.
Table of Contents
Environment
Platform: NX-1465-G5
AOS: 6.5.1.5 LTS
AHV: 20201105.30417
Backup Tool: HYCU Backup Controller（4.6.0）

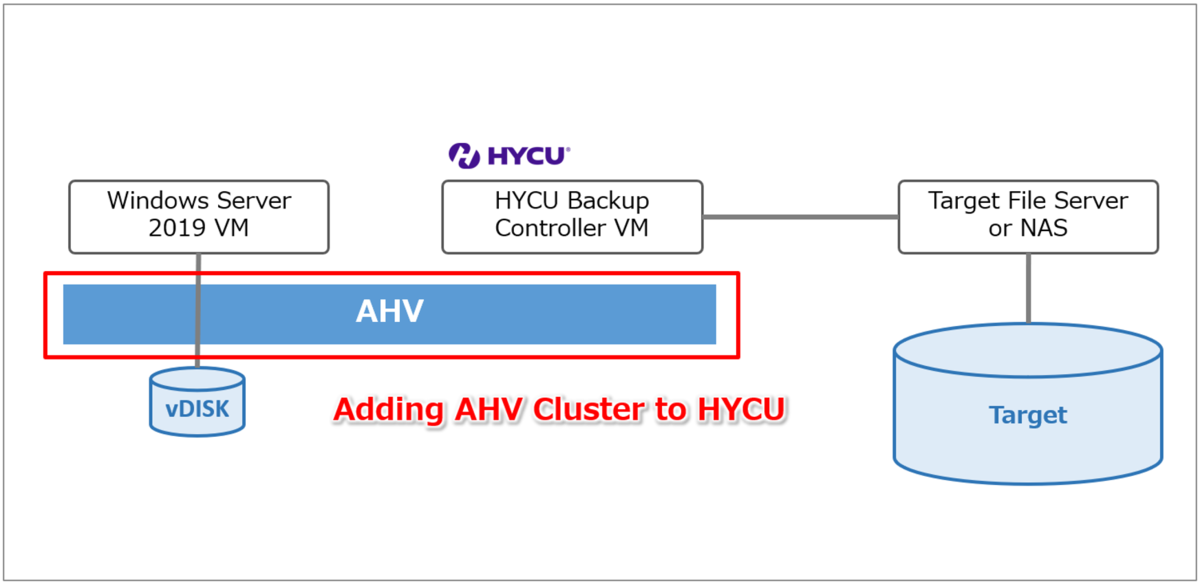

▽Overview
1. Adding source AHV cluster

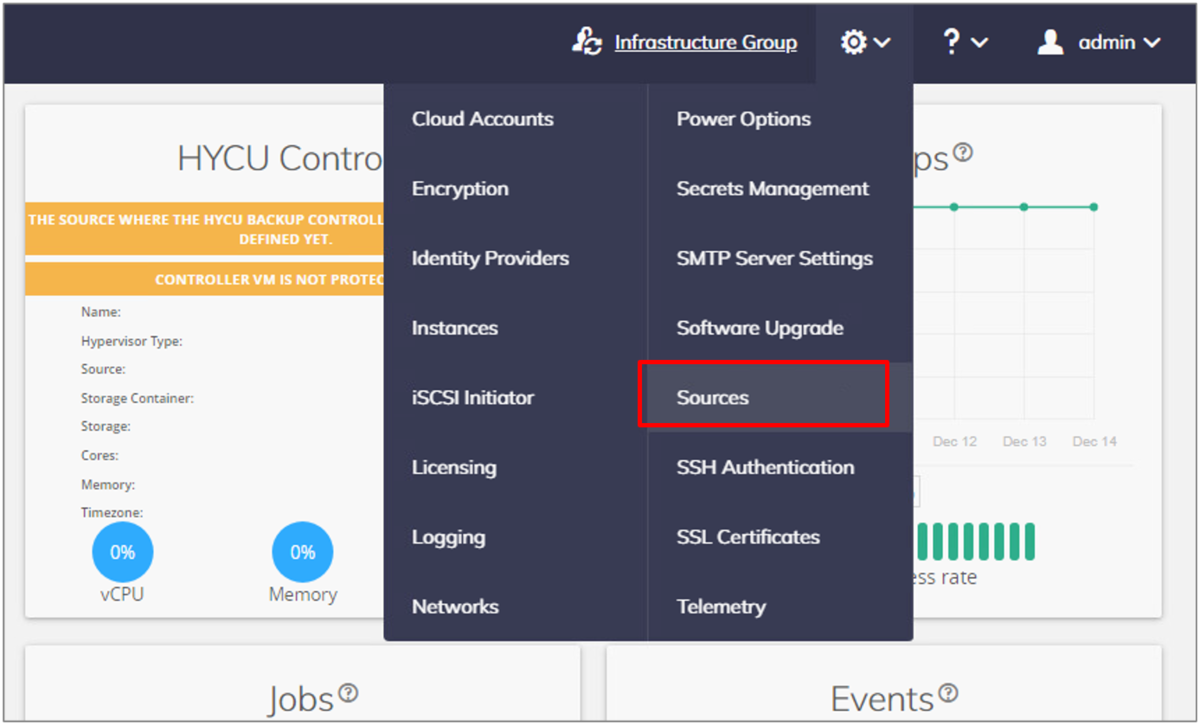

▽Select Sources on HYCU web console.

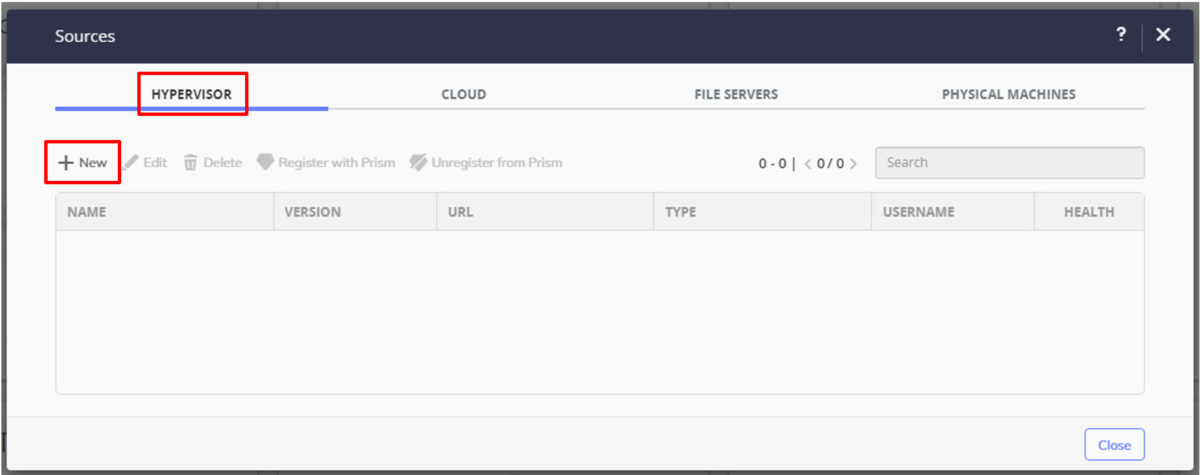

▽Access HYPERVISOR tab and click on +New

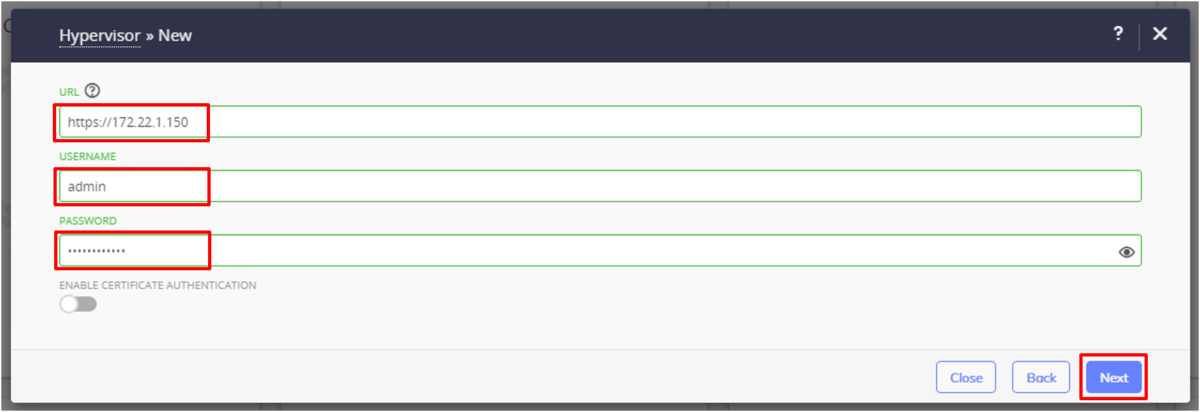

▽Enter Nutanix Cluster VIP and Account. (same as prism log-on account.)

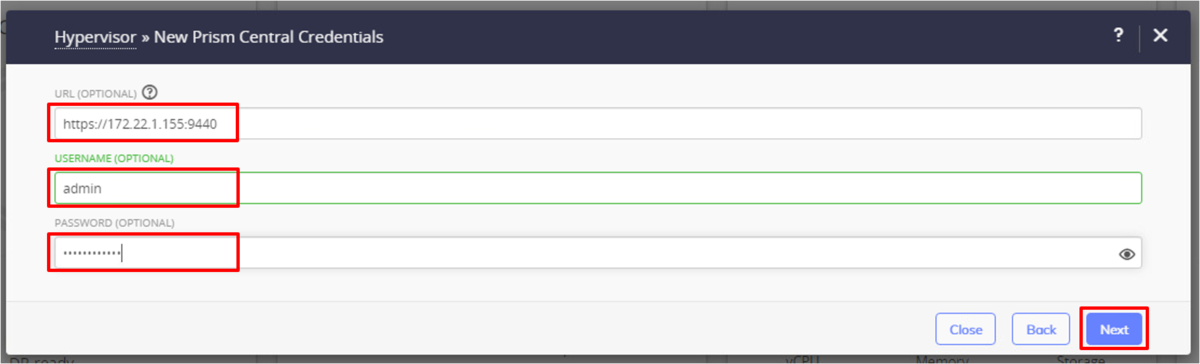

▽(Option) Enter Prism Central IP and Account if you want to use certain features such as backup policy assignment automation.
At this time, I have added Prism Central experimentally.
▽Confirm the summary and click on Save

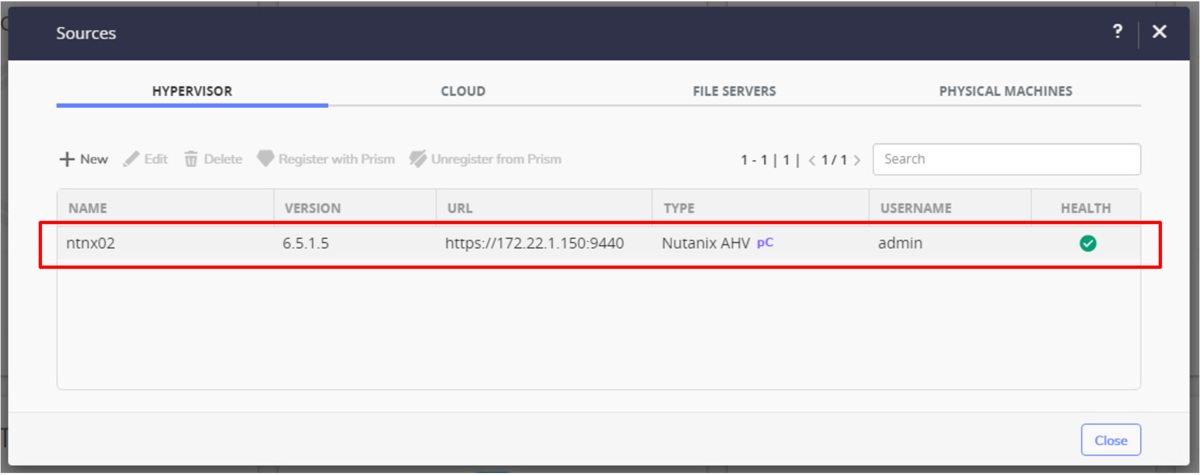

▽Added AHV cluster displayed.
Thank you for reading! Hope it will be useful for you!
<Reference>
HYCU User Guide >> Adding a Nutanix cluster
https://download.hycu.com/ec/v4.6.0/help/en/HYCU_UserGuide.pdf
Next: Adding Target
