前回の記事では、Nutanix AHVの仮想スイッチを構成するOVSで、br0ブリッジ内での通信処理の仕組みを確認しました。今回は、br0だけでなく、その他のブリッジの情報も確認してみます。
目次
1.今回の環境
3ノードAHVクラスタ
AOS: 7.0.1
AHV: 10.0.1
Prism Central: pc.2024.3.1.1
test-VM: Windows Server 2022
環境は以下のイメージで、一般的なNutanixの3ノードクラスタです。

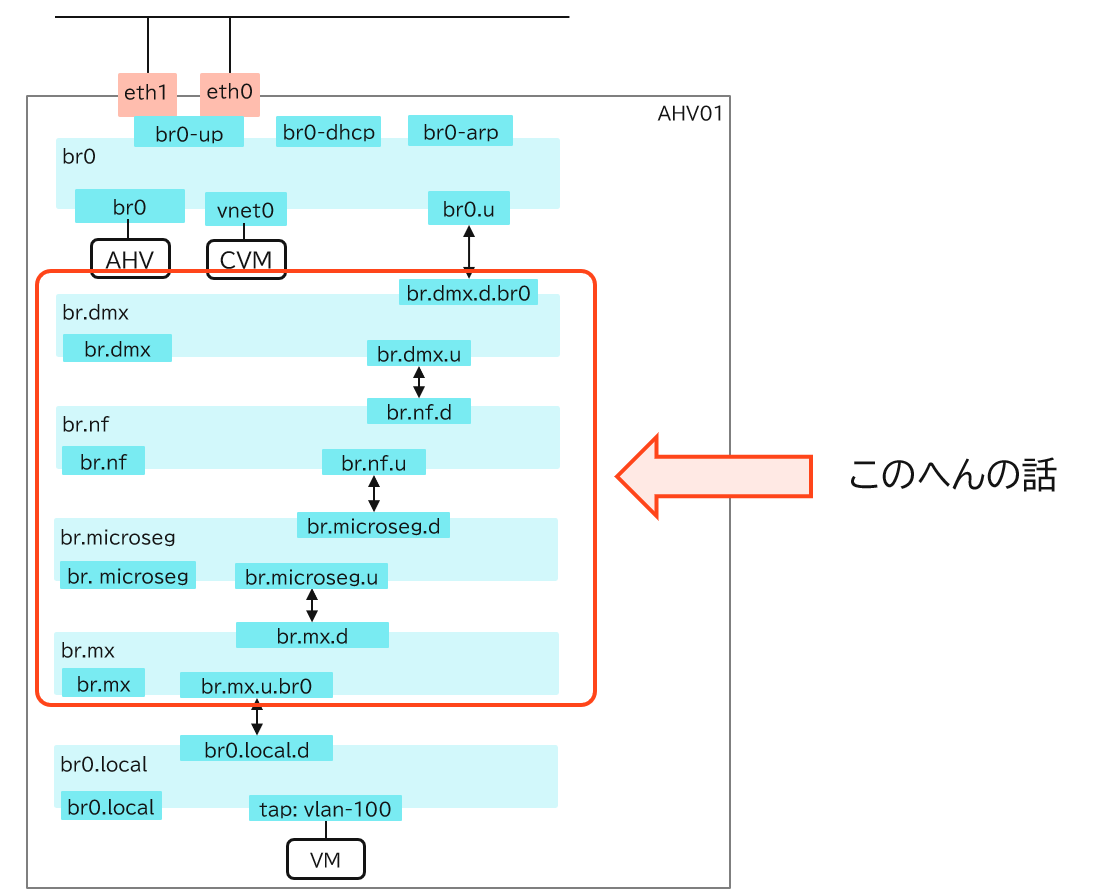

イメージとしては、ノード上に作成している仮想マシンの通信経路となる▽このあたりの話です。
2. 各ブリッジのFlowテーブルの確認
「br.dmx」ブリッジ
br.dmxブリッジのFlowテーブルは以下の通りです。
[root@ahv-01 ~]# ovs-ofctl dump-flows br.dmx
cookie=0x0, duration=873998.034s, table=0, n_packets=319411955, n_bytes=160151019571, priority=31,in_port="br.dmx.u" actions=learn(table="flow_table_32768",hard_timeout=300,priority=31,NXM_NX_PKT_MARK[0..7],NXM_OF_ETH_DST=NXM_OF_ETH_SRC,NXM_OF_VLAN_TCI[0..11],load:0x1->NXM_NX_REG0),resubmit(,"flow_table_32768"),resubmit(,2)
cookie=0x0, duration=873998.032s, table=0, n_packets=343652216, n_bytes=150880945477, priority=31,in_port="br.dmx.d.br0" actions=load:0->NXM_NX_PKT_MARK,learn(table="flow_table_32768",hard_timeout=300,priority=31,NXM_NX_PKT_MARK[0..7],NXM_OF_ETH_DST=NXM_OF_ETH_SRC,NXM_OF_VLAN_TCI[0..11],load:0x2->NXM_NX_REG0),output:"br.dmx.u"
cookie=0x0, duration=873999.082s, table=0, n_packets=0, n_bytes=0, priority=0 actions=drop
cookie=0x0, duration=873998.034s, table=0, n_packets=0, n_bytes=0, priority=30 actions=drop
cookie=0x0, duration=859898.898s, table="flow_table_32768", n_packets=29, n_bytes=9946, priority=34,pkt_mark=0/0xff,udp,vlan_tci=0x089d/0x0fff,dl_src=50:6b:8d:c3:d5:32,dl_dst=ff:ff:ff:ff:ff:ff,tp_dst=67 actions=load:0x2->NXM_NX_REG0
～～～～中略～～～～
cookie=0x0, duration=873998.032s, table=2, n_packets=0, n_bytes=0, priority=32,pkt_mark=0/0xff,arp,reg0=0x1 actions=IN_PORT,output:"br.dmx.d.br0"
cookie=0x0, duration=873998.033s, table=2, n_packets=0, n_bytes=0, priority=31,reg0=0x1 actions=IN_PORT
cookie=0x0, duration=873998.033s, table=2, n_packets=0, n_bytes=0, priority=31,reg0=0x3 actions=drop
cookie=0x0, duration=873998.033s, table=2, n_packets=102684, n_bytes=4755496, priority=31,pkt_mark=0/0xff,reg0=0 actions=IN_PORT,output:"br.dmx.d.br0"
cookie=0x0, duration=873998.032s, table=2, n_packets=319309271, n_bytes=160146264075, priority=31,pkt_mark=0/0xff,reg0=0x2 actions=output:"br.dmx.d.br0"
cookie=0x0, duration=873998.033s, table=2, n_packets=0, n_bytes=0, priority=30 actions=drop
cookie=0x0, duration=873998.034s, table=0, n_packets=319411955, n_bytes=160151019571, priority=31,in_port="br.dmx.u" actions=learn(table="flow_table_32768",hard_timeout=300,priority=31,NXM_NX_PKT_MARK[0..7],NXM_OF_ETH_DST=NXM_OF_ETH_SRC,NXM_OF_VLAN_TCI[0..11],load:0x1->NXM_NX_REG0),resubmit(,"flow_table_32768"),resubmit(,2)
cookie=0x0, duration=873998.032s, table=0, n_packets=343652216, n_bytes=150880945477, priority=31,in_port="br.dmx.d.br0" actions=load:0->NXM_NX_PKT_MARK,learn(table="flow_table_32768",hard_timeout=300,priority=31,NXM_NX_PKT_MARK[0..7],NXM_OF_ETH_DST=NXM_OF_ETH_SRC,NXM_OF_VLAN_TCI[0..11],load:0x2->NXM_NX_REG0),output:"br.dmx.u"
cookie=0x0, duration=873999.082s, table=0, n_packets=0, n_bytes=0, priority=0 actions=drop
cookie=0x0, duration=873998.034s, table=0, n_packets=0, n_bytes=0, priority=30 actions=drop
cookie=0x0, duration=859898.898s, table="flow_table_32768", n_packets=29, n_bytes=9946, priority=34,pkt_mark=0/0xff,udp,vlan_tci=0x089d/0x0fff,dl_src=50:6b:8d:c3:d5:32,dl_dst=ff:ff:ff:ff:ff:ff,tp_dst=67 actions=load:0x2->NXM_NX_REG0
～～～～中略～～～～
cookie=0x0, duration=873998.032s, table=2, n_packets=0, n_bytes=0, priority=32,pkt_mark=0/0xff,arp,reg0=0x1 actions=IN_PORT,output:"br.dmx.d.br0"
cookie=0x0, duration=873998.033s, table=2, n_packets=0, n_bytes=0, priority=31,reg0=0x1 actions=IN_PORT
cookie=0x0, duration=873998.033s, table=2, n_packets=0, n_bytes=0, priority=31,reg0=0x3 actions=drop
cookie=0x0, duration=873998.033s, table=2, n_packets=102684, n_bytes=4755496, priority=31,pkt_mark=0/0xff,reg0=0 actions=IN_PORT,output:"br.dmx.d.br0"
cookie=0x0, duration=873998.032s, table=2, n_packets=319309271, n_bytes=160146264075, priority=31,pkt_mark=0/0xff,reg0=0x2 actions=output:"br.dmx.d.br0"
cookie=0x0, duration=873998.033s, table=2, n_packets=0, n_bytes=0, priority=30 actions=drop

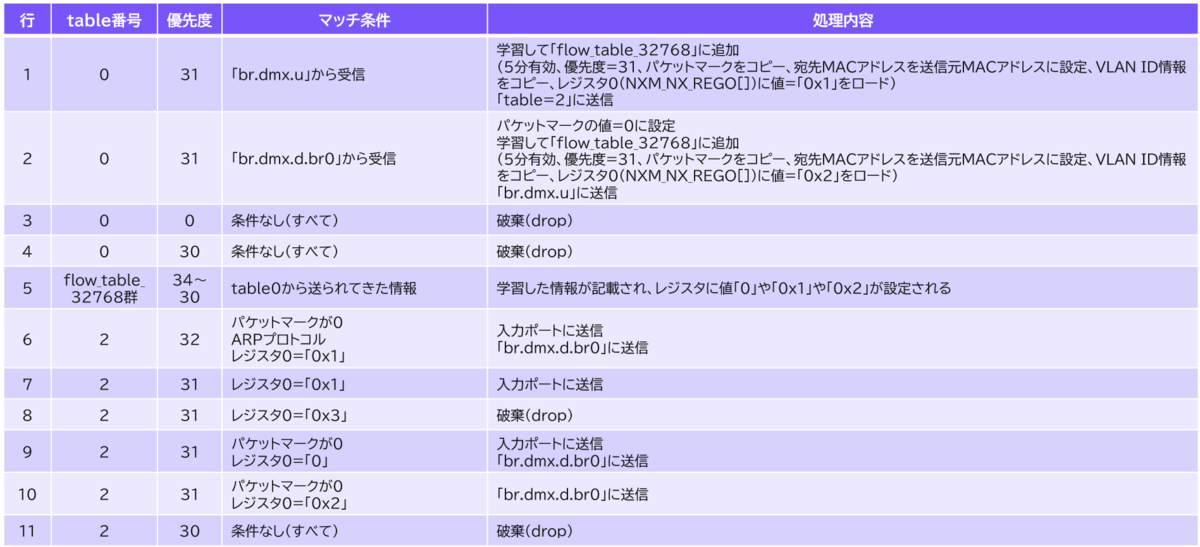

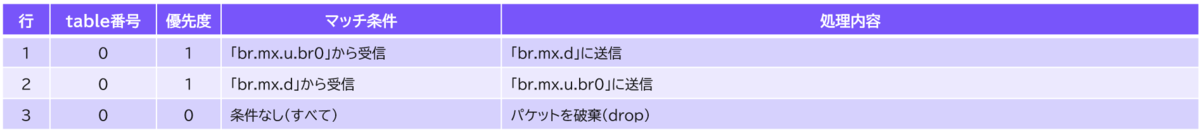

▽表で表現するとこんな感じです。
このブリッジでは、「table=0」で学習しつつ、別のポートに転送したり、table=2に送信して、別のポートに送信したり破棄したりしていますね。学習した情報に対して、レジスタに特定の値をロードしたりしているようです。なお、「MACアドレステーブルは白紙でした。
「br.nf」ブリッジ
br.nfブリッジのFlowテーブルは以下の通りです。
[root@ahv-01 ~]# ovs-ofctl dump-flows br.nf
cookie=0x0, duration=876757.784s, table=0, n_packets=320403712, n_bytes=160587747136, priority=11,in_port="br.nf.u" actions=load:0x2->NXM_NX_REG6,resubmit(,10)
cookie=0x0, duration=876757.783s, table=0, n_packets=344866220, n_bytes=151346989892, priority=11,in_port="br.nf.d" actions=load:0x1->NXM_NX_REG6,resubmit(,10)
cookie=0x0, duration=880317.056s, table=0, n_packets=0, n_bytes=0, priority=0 actions=NORMAL
cookie=0x0, duration=876757.783s, table=0, n_packets=0, n_bytes=0, priority=10 actions=drop
cookie=0x0, duration=873147.758s, table=1, n_packets=0, n_bytes=0, priority=12,vlan_tci=0x0000/0x0fff,dl_src=50:6b:8d:96:c5:eb actions=load:0x200->NXM_NX_PKT_MARK
cookie=0x0, duration=862658.627s, table=1, n_packets=0, n_bytes=0, priority=12,vlan_tci=0x089d/0x0fff,dl_src=50:6b:8d:c3:d5:32 actions=load:0x300->NXM_NX_PKT_MARK
cookie=0x0, duration=874250.184s, table=1, n_packets=0, n_bytes=0, priority=11,vlan_tci=0x0000/0x0fff actions=load:0->NXM_NX_PKT_MARK
cookie=0x0, duration=874193.318s, table=1, n_packets=0, n_bytes=0, priority=11,vlan_tci=0x089d/0x0fff actions=load:0->NXM_NX_PKT_MARK
cookie=0x0, duration=876757.783s, table=1, n_packets=0, n_bytes=0, priority=10 actions=exit
cookie=0x0, duration=876757.782s, table=10, n_packets=665269932, n_bytes=311934737028, priority=10 actions=resubmit(,12)
cookie=0x0, duration=876757.782s, table=11, n_packets=0, n_bytes=0, priority=10 actions=resubmit(,20)
cookie=0x0, duration=876757.782s, table=12, n_packets=665269932, n_bytes=311934737028, priority=10 actions=resubmit(,20)
cookie=0x0, duration=876757.782s, table=13, n_packets=0, n_bytes=0, priority=10 actions=resubmit(,20)
cookie=0x0, duration=876757.781s, table=20, n_packets=665269932, n_bytes=311934737028, priority=10 actions=resubmit(,21)
cookie=0x0, duration=876757.781s, table=21, n_packets=665269932, n_bytes=311934737028, priority=10 actions=resubmit(,40)
cookie=0x0, duration=876757.781s, table=40, n_packets=665269932, n_bytes=311934737028, priority=10 actions=resubmit(,50)
cookie=0x0, duration=876757.781s, table=50, n_packets=320403712, n_bytes=160587747136, priority=11,in_port="br.nf.u" actions=output:"br.nf.d"
cookie=0x0, duration=876757.781s, table=50, n_packets=344866220, n_bytes=151346989892, priority=11,in_port="br.nf.d" actions=output:"br.nf.u"
cookie=0x0, duration=876757.781s, table=50, n_packets=0, n_bytes=0, priority=10 actions=drop
cookie=0x0, duration=876757.784s, table=0, n_packets=320403712, n_bytes=160587747136, priority=11,in_port="br.nf.u" actions=load:0x2->NXM_NX_REG6,resubmit(,10)
cookie=0x0, duration=876757.783s, table=0, n_packets=344866220, n_bytes=151346989892, priority=11,in_port="br.nf.d" actions=load:0x1->NXM_NX_REG6,resubmit(,10)
cookie=0x0, duration=880317.056s, table=0, n_packets=0, n_bytes=0, priority=0 actions=NORMAL
cookie=0x0, duration=876757.783s, table=0, n_packets=0, n_bytes=0, priority=10 actions=drop
cookie=0x0, duration=873147.758s, table=1, n_packets=0, n_bytes=0, priority=12,vlan_tci=0x0000/0x0fff,dl_src=50:6b:8d:96:c5:eb actions=load:0x200->NXM_NX_PKT_MARK
cookie=0x0, duration=862658.627s, table=1, n_packets=0, n_bytes=0, priority=12,vlan_tci=0x089d/0x0fff,dl_src=50:6b:8d:c3:d5:32 actions=load:0x300->NXM_NX_PKT_MARK
cookie=0x0, duration=874250.184s, table=1, n_packets=0, n_bytes=0, priority=11,vlan_tci=0x0000/0x0fff actions=load:0->NXM_NX_PKT_MARK
cookie=0x0, duration=874193.318s, table=1, n_packets=0, n_bytes=0, priority=11,vlan_tci=0x089d/0x0fff actions=load:0->NXM_NX_PKT_MARK
cookie=0x0, duration=876757.783s, table=1, n_packets=0, n_bytes=0, priority=10 actions=exit
cookie=0x0, duration=876757.782s, table=10, n_packets=665269932, n_bytes=311934737028, priority=10 actions=resubmit(,12)
cookie=0x0, duration=876757.782s, table=11, n_packets=0, n_bytes=0, priority=10 actions=resubmit(,20)
cookie=0x0, duration=876757.782s, table=12, n_packets=665269932, n_bytes=311934737028, priority=10 actions=resubmit(,20)
cookie=0x0, duration=876757.782s, table=13, n_packets=0, n_bytes=0, priority=10 actions=resubmit(,20)
cookie=0x0, duration=876757.781s, table=20, n_packets=665269932, n_bytes=311934737028, priority=10 actions=resubmit(,21)
cookie=0x0, duration=876757.781s, table=21, n_packets=665269932, n_bytes=311934737028, priority=10 actions=resubmit(,40)
cookie=0x0, duration=876757.781s, table=40, n_packets=665269932, n_bytes=311934737028, priority=10 actions=resubmit(,50)
cookie=0x0, duration=876757.781s, table=50, n_packets=320403712, n_bytes=160587747136, priority=11,in_port="br.nf.u" actions=output:"br.nf.d"
cookie=0x0, duration=876757.781s, table=50, n_packets=344866220, n_bytes=151346989892, priority=11,in_port="br.nf.d" actions=output:"br.nf.u"
cookie=0x0, duration=876757.781s, table=50, n_packets=0, n_bytes=0, priority=10 actions=drop
▽表で表現するとこんな感じです。
このブリッジでは、入力ポートに基いて、レジスタに値をロードしながら、別のポートに転送しているようですね。こちらもMACアドレステーブルは白紙でした。「table=0」→「table=1」へのパスがないので、「table=1」の処理がいつ適用されるのか不明ですね。
